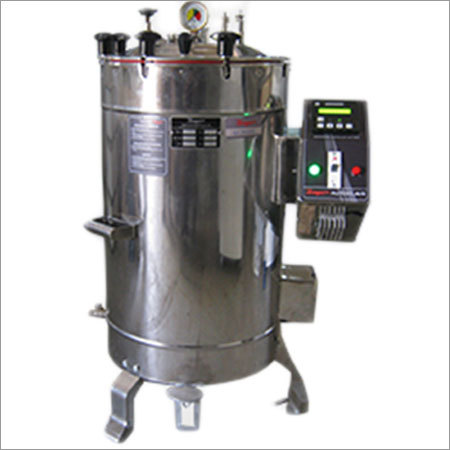

Autoclave

Autoclave
Autoclave
Product Code : LA 15
Brand Name : TEMPO INSTRUMENTS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description
Our establishment is an eminent manufacturer, supplier and exporter of excellent Autoclave. It is massively used and applauded among the users. This is manufactured using quality assured raw materials and modern technology in adherence with set norms and standards. As a result, Autoclave provided by us is massively appreciated and demanded among the users. In addition, we offer this in at comprehensive prices in various packaging options. Features, technical specifications and other details are as follows:
  • Longer working life
  • Superior performance
  • Precision engineering
  • Seamless quality
  • Comprehensive prices

Technical Specification

  • Temperature Range : 121°C to 125°C
  • Pressure Range : 15 to 22 PSI, factory set at 15 PSI
  • 230V AC, Single Phase, 50Hz

Standard Model (S)

Inside S.S. 304 with mirror polish & outside mild steel powder coated.

GMP Model (G)

Inside S.S. 316 with mirror polish & outside stainless steel 304 with dull buff finish.

Specification

Vertical double walled design, has single chamber for Steam & water
  • Lid. flange & bottom sheet also made of S.S all joints Argon welded.
  • Joint less silicon Gasket. Heavy duty industrial flange heater.
  • Lid fitting Pressure gauge 0-30 PSI, safety spring loaded Pressure valve, steam Release valve.
  • Foot lifting arrangement is provided in 121C/D/E/F, Basket made of thick Stainless Steel (S.S.) rod wire mesh.
  • Safety high pressure release valve.

Models

Capacity
Liters

Internal size
Dia x Ht cm

Rating (KW)

TI â€â€œ 121A

22

25 x 45

1.5

TI - 121 B

35

30 x 50

2.0

TI - 121 C

53

35 x 55

3.0

TI - 121 D

95

45 x 60

4.0

TI - 121 E

119

45 x 75

4.5

TI - 121 F

178

55 x 75

6.0

Options

SEMI AUTOMATIC SYSTEM FOR AUTOCLAVE

Supplied with Microprocessor Based Digital Temperature controller with inbuilt Timer
Low water level cut off system with magnetic float switch for heaterâ€â„¢s safety.

FULLY AUTOMATIC SYSTEM FOR AUTOCLAVE:
Supplied with Microprocessor Based Digital Temperature controller with inbuilt Timer
automatic purging of steam with solenoid valve.
Low water level cut off system with magnetic float switch for heaterâ€â„¢s safety.

(To be order with fully automatic )

Supplied with Microprocessor Based Digital Temperature controller with inbuilt Timer & printer interface
Automatic purging of steam with solenoid valve.
Low water level cut off system with magnetic float switch for heaterâ€â„¢s safety.

FULLY AUTOMATIC SYSTEM FOR AUTOCLAVE with printer interface:

Optional Accessories

  • Safety pressure control switch
  • Vacuum breaker & self purging system
  • 4 channel self data logger with printer interface
  • Water level indicator with glass tube
  • Foot pedal lifting arrangement for size no A & B

OPTIONAL FEATURES

  • Data Logger
  • CFR 21 Part 11 compliance software for data logger
  • Data Scanner complete with sensor
  • Safety digital temperature controller
  • Timer
