Home » Products » Laboratory Ovens » Laboratory Ovens

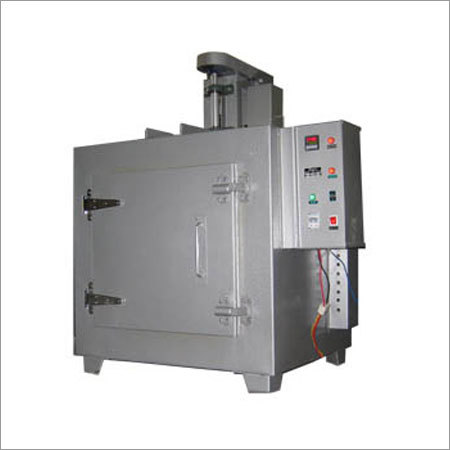

Laboratory Ovens

Laboratory Ovens
Laboratory Ovens
Product Code : HTO 11
Brand Name : TEMPO INSTRUMENTS
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Others
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • AN ISO 9001:2008 Certified company
Product Description
We are an eminent manufacturer, supplier and exporter of excellent High Temperature Precision Oven 400. It is using ultra modern technology and quality assured raw materials, which are acquired from prominent vendors of the arena made in compliance with defined parameters of the arena. In addition to this, High Temperature Precision Oven 400 is suitably checked on varied characteristics to ensure its tandem with the industry laid standards and norms. Besides, we offer it at reasonable prices in a variety of demanded sizes and specifications.

Features:

  • Longer life
  • Seamless quality
  • Precision engineering
  • Superior performance
Technical Specification
  • Temp. Range : 50°C to 400°C
  • Temp. Accuracy : ± 1 °C
  • Temp. Uniformity: ±2% of set Temp.

Standard Model (S)

Inside S.S. 304 mirror finish & Outer Mild steel (CRCA) sheet with powder coated.
OR
Inside Mild steel (CRCA) with heat resistant aluminum paint & Outer Mild steel (CRCA) sheet with powder coated.

GMP Model (G)

Inside S.S. 316 with mirror polish & outside stainless steel 304 with dull buff finish.

 Specification Construction

  • Triple wall construction.
Insulation
  • 4â€Â High grade heavy glass wool insulation ensures stable temperature & reduced energy consumption.
Air Recirculation (V-Belt Drive)
  • Motorized Blower with V-BELT drive on top side of the chamber develops unique air flow system which ensures maximum uniform temperature distribution inside the chamber.
  • Unique air flow assures quick recovery after door openings.
  • V-Belt drive ensures continuous run of motor on high temperature to avoid damage of motor.
Blower Motor
  • 1/12 HP, TEFC, F-class insulation, Single Phase, 1440 RPM, 230 Volts
  • 450°C Single / Three Phases
Heating System
  • Specially designed U shape S. S. tubular heating elements used on side walls to maintain uniform condition inside the chamber. Heaters terminals taken out for wiring to avoid burning of heater terminals on high temperature.
Door
  • Single door fitted on heavy cast and chromium plated hinges with spring and roller type latch with asbestos gasket to avoid heat loss.
Trays
  • Specially designed stainless steel /G.I.wire mesh trays ensure uniform temperature distribution.
Temperature Control
  • Temperature Control: By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value.
Safety Features
  • Limit switch for interlocking connection between motor & heater.

Models

Capacity
Liters

Internal size
H x W x D cm

External Size
H x W x D cm

Trays

TI-128 A HT

43

35 x 35 x 35

104 x 107 x 69

2

TI-128 B HT

91

45 x 45 x 45

114 x 117 x 79

2

TI-128 C HT

122

60 x 45 x 45

130 x 117 x 79

3

TI-128 D HT

216

60 x 60 x 60

130 x 133 x 95

3

TI-128 E HT

324

90 x 60 x 60

160 x 133 x 95

4

OPTIONAL FEATURES

  • Data Logger
  • CFR 21 part 11 compliance software for data logger
  • Data scanner complete with sensor
  • SMS Mobile alert system
  • Safety digital temperature controller
  • Timer
