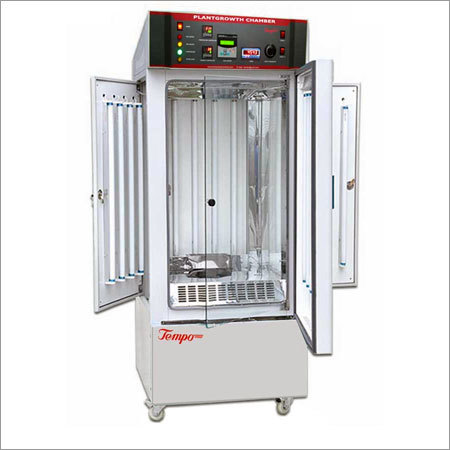

Laboratory Plant Growth Chamber

Laboratory Plant Growth Chamber
Laboratory Plant Growth Chamber
Product Code : PGC 04
Brand Name : TEMPO INSTRUMENTS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description
Laboratory Plant Growth Chamber is hugely used and massively applauded among the masses. This is manufactured using ultra modern technology and top quality materials, which are procured from reliable vendors. Hence, we are reckoned as a reliable manufacturer, supplier and exporter. In addition to this, Laboratory Plant Growth Chamber is further checked on diverse norms of durability, quality, and reliability. Therefore, it is extremely durable and sturdy in construction. In addition to this, key features and other details are as follows:
  • Long service life
  • Corrosion resistant
  • Best quality
  • Dimensionally accurate
  • Abrasion resistant

Technical Specification

  • Temp. Range : 10°C to 60°C
  • Temp. Accuracy : ± 0.2°C
  • Temp. Uniformity : ± 2  °C
  • Humidity Range : 40% Rh to 98% Rh
  • Humidity Accuracy : + 2 % Rh
  • Humidity Uniformity : + 3 % Rh
  • Supply : Single phase 230V AC

Standard Model (S)

Inside S.S. 304 with mirror polish & outside mild steel powder coated.

GMP Model (G)

Inside S.S. 316 with mirror polish & outside stainless steel 304 with dull buff finish.

Specification

  • Double walled construction with backside triple.
  • 3â€Â Thick PUF Insulation ensures stable temperature with humidity & reduced energy consumption.
  • Motorized Blower at back side of the chamber develops unique air flow system which ensures maximum uniform temperature & humidity condition inside the chamber.Unique air flow assures quick recovery after door openings.
  • 1/12 HP, TEFC , F-class insulation, Single phase, 1440 RPM, 230 Volts
  • High quality U shape S.S. Tubular Heaters are used for better heating.
  • Steam injection system (Non condensing type) & reservoir tank with water level arrangement with indicator.
Temperature Control
  • Temperature Control : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value.
Humidity Control
  • Humidity Control & Sensing : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value with direct % RH.Direct RH electronic capacitor type humidity sensor, avoid wick cup & water. Safety Features
  • Additional Safety thermostat to cut of dry heater supply in case temperature of overshoot.
  • Float switch to cutoff the wet heater supply in case of low water level. Audio & Visual alarm.
  • Compressor ON delay timer (2 min.) to safe guard the compressor.
  • In built over load protector provided for hermetically sealed compressor.
  • 50 mm validation port hole with silicon rubber seal to insert sensors for validation.
  • Full view observation Acrylic door with gasket to observe sample inside the chamber.
  • Interior illumination for Working area
  • Specially designed stainless steel rod trays ensure uniform temperature distribution.

Models
(S) or (G)

Capacity
Liters

Internal size
H x W x D cm

Trays

TI â€â€œ S / G

90

42 x 38 x 57

2

TI â€â€œ S / G

170

50 x 43 x 85

3

TI â€â€œ S / G

290

56 x 47 x 112

4

TI â€â€œ S / G

350

58 x 51 x 120

5

TI â€â€œ S / G

450

64 x 59 x 120

5

TI â€â€œ S / G

600

68 x 61 x 146

5

TI â€â€œ S / G

800

75 x 74 x 146

7

TI â€â€œ S / G

1000

115 x 60 x 146

14

TI â€â€œ S / G

1500
Double Door

150 x 69 x 146

14

TI â€â€œ S / G

2000
Double Door

150 x 92 x 146

14

Note: Two blowers for 400 ltrs to 2000 ltrs. Capacity chambers.

OPTIONAL FEATURES

  • PLCfor auto change over for standby refrigeration system with HMI
  • CFR 21 part 11 compliance software for PLC with RS 485 or Ethernet communication
  • Stand by refrigeration and humidity system
  • Data Logger
  • CFR 21 part 11 compliance software for data logger
  • Data scanner complete with sensor
  • SMS Mobile alert system
  • Door access security system
  • Safety digital temperature controller
  • Digital Timer



Trade Information
  • Payment Terms
  • Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Others
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2008
