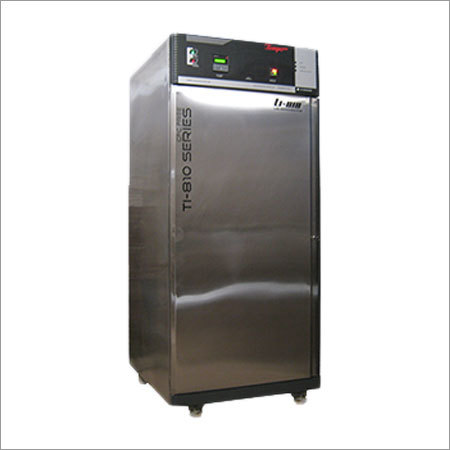

Laboratory Refrigerator

Laboratory Refrigerator
Laboratory Refrigerator
Product Code : LR 06
Brand Name : TEMPO INSTRUMENTS
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Others
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2008
Product Description
Under the direction of veteran and skilled personnel, offered Lab Refrigerator is made in accordance with the pre-defined quality standards and norms. Therefore, this is massively used in various industries. Apart from this, in order to meet the various needs of the arena, we manufacture this in a variety of demanded sizes and specifications. Owing to all, Lab Refrigerator provided by us is massively acclaimed and demanded among the valued clients. Features, specifications and other details of the offered product are as follows:
  • Sturdy
  • Fine finish
  • Precisely design
  • Long service life
  • Enhanced Durability
  • Resistant against corrosion

Technical Specification

  • Temperature Range : 2°C to 8°C
  • Temperature Accuracy : ± 0.2°C
  • Temperature Uniformity : ±  2°C

Standard Model (S)

Inside S.S. 304 with mirror polish & outside mild steel powder coated.

GMP Model (G)

Inside S.S. 316 with mirror polish & outside stainless steel 304 with dull buff finish.

Specification

  • Double walled construction with backside triple.
  • 3â€Â Thick PUF Insulation ensures stable temperature with reduced energy consumption.
  • Motorized Blower at back side of the chamber develops unique air flow system which ensures uniform temperature inside the chamber. Unique air flow assures quick recovery after door openings.
  • 1/12 HP, TEFC , F-class insulation, Single phase, 1440 RPM, 230 Volts
  • High quality U shape S.S. Tubular Heaters are used for better heating.
Temperature Control
  • Temperature Control : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value.
SafetyFeatures
  • Additional Safety thermostat to cut of dry heater supply in case temperature of overshoot.
  • In built over load protector provided for hermetically sealed compressor.
Refrigeration System
  • Refrigeration by means of CFC Free hermitically sealed Emerson Copland make compressor with R 134A for better cooling with ECO friendly refrigerant with time delay to safe guard compressor system.
  • 50 mm validation port hole with silicone rubber seal to insert sensors for validation.
  • Full view observation Acrylic door with gasket to observe sample inside the chamber.
  • Interior illumination for working area
  • Specially designed stainless steel rod trays ensure uniform temperature distribution.

Models
(S) or (G)

Capacity
Liters

Internal size
H x W x D cm

External Size
H x W x D cm

Trays

TI - 810 S / G

100

50 x 50 x 40

113 x 71 x 91

2

TI - 811 S / G

170

70 x 60 x 40

133 x 81 x 91

2

TI - 812 S / G

200

60 x 60 x 60

123 x 81 x 111

2

TI - 813 S / G

285

80 x 60 x 60

146 x 81 x 111

3

TI - 814 S / G

325

90 x 60 x 60

156 x 81 x 111

4

TI - 815 S / G

400

110 x 60 x 60

176 x 81 x 111

4

TI - 816 S / G

600

125 x 70 x 70

191 x 91 x 121

4

TI - 817 S / G

800

125 x 80 x 80

193 x 101 x 131

5

TI - 818 S / G

1000

157 x 80 x 80

225 x 101 x 131

5

TI â€â€œ 819 S / G

1500
Double Door

146 x 150 x 69

214 x 171 x 120

10

TI â€â€œ 820 S / G

2000
Double Door

146 x 150 x 92

214 x 171 x 143

10

Note: Two blowers for 400 ltrs to 2000 ltrs. Capacity chambers.

OPTIONAL FEATURES

  • PLCfor auto change over for standby refrigeration system with HMI
  • CFR 21 part 11 compliance software for PLC with RS 485 or Ethernet communication
  • Stand by refrigeration system
  • Data Logger
  • CFR 21 part 11 compliance software for data logger
  • Data scanner complete with sensor
  • SMS Mobile alert system
  • Door access security system
  • Safety digital temperature controller
  • Timer
