Home » Products » Laboratory Test Chambers » Laboratory Test Chambers

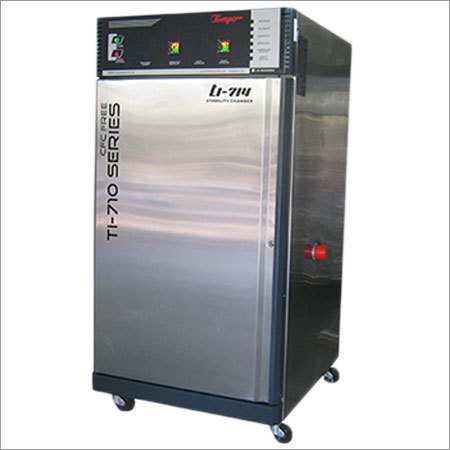

Laboratory Test Chambers

Laboratory Test Chambers
Laboratory Test Chambers
Product Code : SC 02
Brand Name : TEMPO INSTRUMENTS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description
We are a reputed manufacturer, supplier and exporter of excellent Stability Chamber. This is manufactured by utilizing latest techniques, modern machines and top notch materials under the direction of talented experts in tandem with the set standards and norms of industry. Our experts further test them on various parameter of the arena. Thus, it is massively appreciated and demanded among the users. Moreover, we can also manufacture Stability Chamber in various sizes and specifications. Features are as  follows:
  • Dimensionally accurate
  • Long service life
  • Best quality
  • Corrosion resistant
  • Abrasion resistant

Technical Specification

  • Temp. Range : 20°C to 60°C
  • Temp. Accuracy : ± 0.2°C
  • Temp. Uniformity : ±  1°C
  • Humidity Range : 40% Rh to 90% Rh
  • Humidity Accuracy : + 2 % Rh
  • Humidity Uniformity : + 3 % Rh
As per ICH guidelines :
  • At 25°C : RH = 60%
  • At 30°C : RH = 65%
  • At 40°C : RH = 75%

Standard Model (S)

Inside S.S. 304 with mirror polish & outside mild steel powder coated.

GMP Model (G)

Inside S.S. 316 with mirror polish & outside stainless steel 304 with dull buff finish.

Specification

  • Double walled construction with backside triple.
  • 3â€Â Thick PUF Insulation ensures stable temperature with humidity & reduced energy consumption.
  • Motorized Blower at back side of the chamber develops unique air flow system which ensures maximum uniform temperature & humidity condition inside the chamber.Unique air flow assures quick recovery after door openings.
  • 1/12 HP, TEFC , F-class insulation, Single phase, 1440 RPM, 230 Volts
  • High quality U shape S.S. Tubular Heaters are used for better heating.
  • Steam injection system (Non condensing type) & reservoir tank with water level arrangement with indicator.
Temperature Control
  • Temperature Control : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value.
Humidity Control
  • Humidity Control & Sensing : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value with direct % RH.Direct RH electronic capacitor type humidity sensor, avoid wick cup & water.
Safety Features
  • Additional Safety thermostat to cut of dry heater supply in case temperature of overshoot.
  • Float switch to cutoff the wet heater supply in case of low water level. Audio & Visual alarm.
  • Compressor ON delay timer (2 min.) to safe guard the compressor.
  • In built over load protector provided for hermetically sealed compressor.
Refrigeration System
  • Refrigeration by means of CFC Free hermitically sealed Emerson Copland make compressor with R 134A for better cooling with ECO friendly refrigerant with time delay to safe guard compressor system.
  • 50 mm validation port hole with silicon rubber seal to insert sensors for validation.
  • Full view observation Acrylic door with gasket to observe sample inside the chamber.
  • Interior illumination for Working area
  • Specially designed stainless steel rod trays ensure uniform temperature distribution.

Models
(S) or (G)

Capacity
Liters

Internal size
H x W x D cm

External Size
H x W x D cm

Trays

TI â€â€œ 710 S / G

100

50 x 50 x 40

113 x 71 x 98

2

TI â€â€œ 711 S / G

170

70 x 60 x 40

133 x 81 x 98

2

TI â€â€œ 712 S / G

200

60 x 60 x 60

123 x 81 x 118

2

TI â€â€œ 713 S / G

285

80 x 60 x 60

146 x 81 x 118

3

TI â€â€œ 714 S / G

325

90 x 60 x 60

156 x 81 x 118

4

TI â€â€œ 715 S / G

400

110 x 60 x 60

176 x 81 x 118

4

TI â€â€œ 716 S / G

600

125 x 70 x 70

191 x 91 x 128

4

TI â€â€œ 717 S / G

800

125 x 80 x 80

193 x 101 x 138

5

TI â€â€œ 718 S / G

1000

157 x 80 x 80

225 x 101 x 138

5

TI â€â€œ 719 S / G

1500
Double Door

146 x 150 x 69

214 x 171 x 127

10

TI â€â€œ 720 S / G

2000
Double Door

146 x 150 x 92

214 x 171 x 150

10

Note: Two blowers for 400 ltrs to 2000 ltrs. Capacity chambers.

OPTIONAL FEATURES

  • PLCfor auto change over for standby refrigeration system with HMI
  • CFR 21 part 11 compliance software for PLC with RS 485 or Ethernet communication
  • Stand by refrigeration and humidity system
  • Data Logger
  • CFR 21 part 11 compliance software for data logger
  • Data scanner complete with sensor
  • SMS Mobile alert system
  • Door access security system
  • Safety digital temperature controller
  • Timer
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Others
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2008
