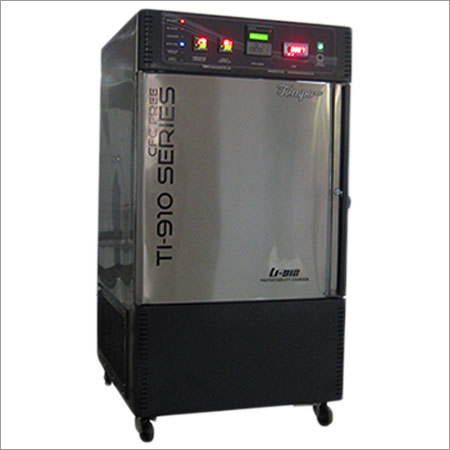

Photostability Chamber

Photostability Chamber
Photostability Chamber
Product Code : PSC 03
Brand Name : TEMPO INSTRUMENTS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Others
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2008
Product Description
Photo Stability Chamber provided by us is reliable, durable and resistant to corrosion, hence, it is massively used and admired among the masses. Our experts manufacture it using best quality materials, which are applauded for their vast features some of them are reliability, longer life, etc. As a result, it is massively demanded among the users. In addition to this, we also provide Photo Stability Chamber in various sizes and specifications. Due to all, we are ranked as a leading exporter, manufacturer and supplier.

Features:

  • Dimensionally accurate
  • Best quality
  • Corrosion resistant
  • Long service life
  • Abrasion resistant

Technical Specification

  • Temp. Range : 20°C to 60°C
  • Temp. Accuracy : ± 0.2°C
  • Temp. Uniformity : ±  1°C
  • Humidity Range : 40% Rh to 90% Rh
  • Humidity Accuracy : + 2 % Rh
  • Humidity Uniformity : + 3 % Rh
  • Fluorescent tube for day light effect and  UV tubes for Ultra Violet ray in accordance to the ICH guidelines requirement of a lightning energy mounting to 1.2 mil lux per hours and integrated UV energy share of 200 Watt Hours per mtr sqr.
As per ICH guidelines :
  • At 25°C : RH = 60%
  • At 30°C : RH = 65%
  • At 40°C : RH = 75%

Standard Model (S)

Inside S.S. 304 with mirror polish & outside mild steel powder coated.

GMP Model (G)

Inside S.S. 316 with mirror polish & outside stainless steel 304 with dull buff finish.

Specification

  • Double walled construction with backside triple.
  • 3â€Â Thick PUF Insulation ensures stable temperature with reduced energy consumption.
  • Motorized Blower at back side of the chamber develops unique air flow system which ensures maximum uniform temperature & humidity condition inside the chamber.U nique air flow assures quick recovery after door openings.
  • 1/12 HP, TEFC , F-class insulation, Single phase, 1440 RPM, 230 Volts
  • High quality U shape S.S. Tubular Heaters are used for better heating.
  • Steam injection system (Non condensing type) & reservoir tank with water level arrangement with indicator.
  • Temperature Control
Temperature Control : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value.
  • Humidity Control

Humidity Control & Sensing : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value with direct % RH.Direct RH electronic capacitor type humidity sensor, avoid wick cup & water.

Safety Features

  • Additional Safety thermostat to cut of dry heater supply in case temperature of overshoot.
  • Float switch to cutoff the wet heater supply in case of low water level. Audio & Visual alarm.
  • Compressor ON delay timer (2 min.) to safe guard the compressor.
  • In built over load protector provided for hermetically sealed compressor.

Refrigeration System

Refrigeration by means of CFC Free hermitically sealed Emerson Copland make compressor with R 134A for better cooling with ECO friendly refrigerant with time delay to safe guard compressor system.

  • 50 mm validation port hole with silicon rubber seal to insert sensors for validation.
  • Full view observation Acrylic door with gasket to observe sample inside the chamber.
  • Interior illumination for Working area
  • Specially designed stainless steel rod trays ensure uniform temperature distribution.

Models
(S) or (G)

Capacity
Liters

Internal size
H x W x D cm

External Size
H x W x D cm

Trays

TIâ€â€œ900 S / G

100

50 x 50 x 40

113 x 71 x 98

2

TIâ€â€œ901 S / G

170

70 x 60 x 40

133 x 81 x 98

2

TIâ€â€œ902 S /G

200

60 x 60 x 60

123 x 81 x 118

2

TIâ€â€œ903 S / G

285

80 x 60 x 60

146 x 81 x 118

3

TIâ€â€œ904 S / G

325

90 x 60 x 60

156 x 81 x 118

3

TI-905 S / G

400

110 x 60 x 60

176 x 81 x 118

3

Note: Two blowers for 400 ltrs to 2000 ltrs. Capacity chambers.

OPTIONAL FEATURES

  • PLC for auto change over for standby refrigeration system with HMI
  • CFR 21 part 11 compliance software for PLC with RS 485 or Ethernet communication
  • Stand by refrigeration and humidity system
  • Data Logger
  • CFR 21 part 11 compliance software for data logger
  • Data scanner complete with sensor
  • SMS Mobile alert system
  • Door access security system
  • Safety digital temperature controller
  • Timer
  • Lux meter
  • UV meter
