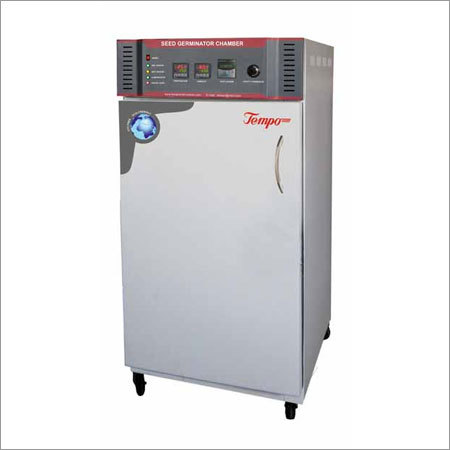

Seed Germinator Single Chamber

Seed Germinator Single Chamber
Seed Germinator Single Chamber
Product Code : SG 05
Brand Name : TEMPO INSTRUMENTS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description
With the assistance of our well known and experienced experts, we are able to provide remarkable Seed Germinator at competitive prices. It is used and widely admired among the masses, as we made it as per the submitted need of the customers using quality materials and ultra modern machines under the visionary guidance of experts. Thus, we are ranked as a celebrated exporter, manufacturer and supplier of the arena. In addition, we offer Seed Germinator in various promised sizes and specifications.

Features:

  • Noted prices
  • Long service life
  • Precisely design
  • Sturdy

Technical Specification

  • Temp. Range : 10 °C to 60°C
  • Temp. Accuracy : ± 1 °C
  • Temp. Uniformity : ±  1°C
  • Humidity Range : 40% Rh to 95% Rh
  • Humidity Accuracy : + 5 % Rh
  • Humidity Uniformity : + 3 % Rh
  • Supply : 230V AC Single Phase

Standard Model (S)

Inside S.S. 304 with mirror polish & outside mild steel powder coated.

Specification

  • Double walled construction with backside triple.
  • 3â€Â Thick PUF Insulation ensures stable temperature with humidity & reduced energy consumption.
  • Motorized Blower at back side of the chamber develops unique air flow system which ensures maximum uniform temperature & humidity condition inside the chamber. Unique air flow assures quick recovery after door openings.
  • 1/12 HP, TEFC , F-class insulation, Single phase, 1440 RPM, 230 Volts
  • High quality U shape S.S. Tubular Heaters are used for better heating.
  • Temperature Control
Temperature Control : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value.
  • Humidity Control

Humidity Control & Sensing : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value with direct % RH.Direct RH electronic capacitor type humidity sensor, avoid wick cup & water.

Safety Features

  • Additional Safety thermostat to cut of dry heater supply in case temperature of overshoot.
  • Float switch to cutoff the wet heater supply in case of low water level. Audio & Visual alarm.
  • Compressor ON delay timer (2 min.) to safe guard the compressor.
  • In built over load protector provided for hermetically sealed compressor.

50 mm validation port hole with silicone rubber seal to insert sensors for validation.

Full view observation Acrylic door with gasket to observe sample inside the chamber.

Interior illumination for Working area

  • Specially designed stainless steel rod trays ensure uniform temperature distribution.

Models

Capacity
Liters

Internal size
H x W x D cm

Trays

TI â€â€œ 751

170

84 x 50 x 40

2

TI â€â€œ 752

285

87 x 57 x 57

2

OPTIONAL FEATURES

  • PLCfor auto change over for standby refrigeration system with HMI
  • CFR 21 part 11 compliance software for PLC with RS 485 or Ethernet communication
  • Stand by refrigeration and humidity system
  • Data Logger
  • CFR 21 part 11 compliance software for data logger
  • Data scanner complete with sensor
  • SMS Mobile alert system
  • Door access security system
  • Safety digital temperature controller
  • Timer
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Others
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2008
