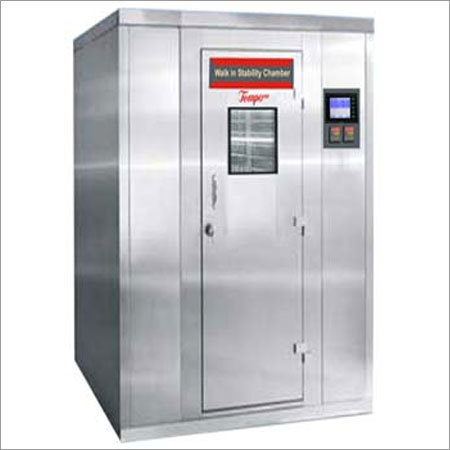

Stability Testing Chamber

Stability Testing Chamber
Stability Testing Chamber
Product Code : WSC 01
Brand Name : TEMPO INSTRUMENTS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description
Stability Testing Chamber is made up under the guidance of experts using ultra modern technology and quality assured raw materials, which are acquired from reliable and prominent vendors of the arena in tandem with defined parameters of the arena. Thus, we are known as a reliable exporter, manufacturer and supplier of the arena. Besides, our experts further suitably test Stability Testing Chamber on varied norms  of the arena in orders to ensure its tandem with the industry laid standards.

Features:

  • Precision engineering
  • Longer life
  • Seamless quality
  • Superior performance
Technical Specification
  •   Temp. Range : 20°C to 60°C
  •   Temp. Accuracy : ± 0.5°C
  •   Temp. Uniformity : ±2°C
  •   Humidity Range : 40% Rh to 90% Rh
  •   Humidity Accuracy : + 2 % Rh
  •   Humidity Uniformity : ± 5% Rh

As per ICH guidelines :

  • At 25°C : RH = 60%
  • At 30°C : RH = 65%
  • At 40°C : RH = 75%

Model

Construction

Inner

Outer

Standard

S.S. 304 Dull Finish

G.I. Powder Coated

Semi GMP

S.S. 304 Dull Finish.

S.S 304 Dull Finish

GMP

S.S. 316 Dull Finish.

S.S 304 Dull Finish

Specification

  • Light weight Sandwich panel. Double walled construction with backside triple wall.
  • 3â€Â Thick PUF Insulation ensures stable temperature with humidity & reduced energy consumption.
  • Motorized Blower at back side of the chamber for recirculation of air to develop unique air flow system which ensures maximum uniform temperature & humidity condition inside the chamber. Unique air flow assures quick recovery after door openings.
  • Single Phase, TEFC , F-class insulation,1440 RPM, 230 Volts
  • High quality S.S. Tubular Heaters are used for better heating.
  • Steam injection system & reservoir tank with water level arrangement with indicator.
Temperature Control
  • Temperature Control : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value with PT100 sensor
Humidity Control
  • Humidity Control & Sensing : By means of Imported Microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value with direct % RH.Direct RH electronic capacitor type humidity sensor, avoid wick cup & water. Safety Features
  • Additional Safety Digital controller to cut of dry heater & wet heater supply in case temperature of overshoot.
  • Float switch to cutoff the wet heater supply in case of low water level. Audio & Visual alarm.
  • Compressor ON delay timer (2 min.) to safe guard the compressor.
  • In built over load protector provided for hermetically sealed compressor.
Refrigeration System
  • Refrigeration by means of CFC Free hermitically sealed Emerson Copland make compressor with R 134A for better cooling with ECO friendly refrigerant with time delay to safe guard compressor system.
  • 50 mm validation port hole with silicone rubber seal to insert sensors for validation.
  • Full view observation Acrylic door with gasket to observe sample inside the chamber.
  • Interior illumination for Working area
  • Specially designed stainless steel rod trays ensure uniform temperature distribution.

Models
(S) or (G)

Capacity

Internal size
H x W x D cm

External Size
H x W x D cm

Tray

Tray size
cm

Cuft.

Liters

TIâ€â€œ710 WIC

190

5400

200 x 136 x 200

212 x 148 x 212

24

90 x 35

TIâ€â€œ711 WIC

230

6400

240 x 136 x 200

252 x 148 x 212

32

90 x 35

TIâ€â€œ712 WIC

280

8000

200 x 200 x 200

212 x 212 x 212

24

90 x 60

TIâ€â€œ713 WIC

340

9600

240 x 200 x 200

252 x 212 x 212

32

90 x 60

TIâ€â€œ714 WIC

530

15000

240 x 250 x 250

252 x 262 x 262

48

72 x 80

TIâ€â€œ715 WIC

640

18000

240 x 250 x 300

252 x 262 x 312

48

90 x 80

OPTIONAL FEATURES

  • PLC for auto change over for standby refrigeration system with HMI
  • CFR 21 part 11 compliance software for PLC with RS 485 or Ethernet communication
  • Stand by refrigeration and humidity system
  • Data Logger
  • CFR 21 part 11 compliance software for data logger
  • Data scanner complete with sensor
  • SMS Mobile alert system
  • Door access security system
  • Safety digital temperature controller
  • Timer
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Others
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2008
